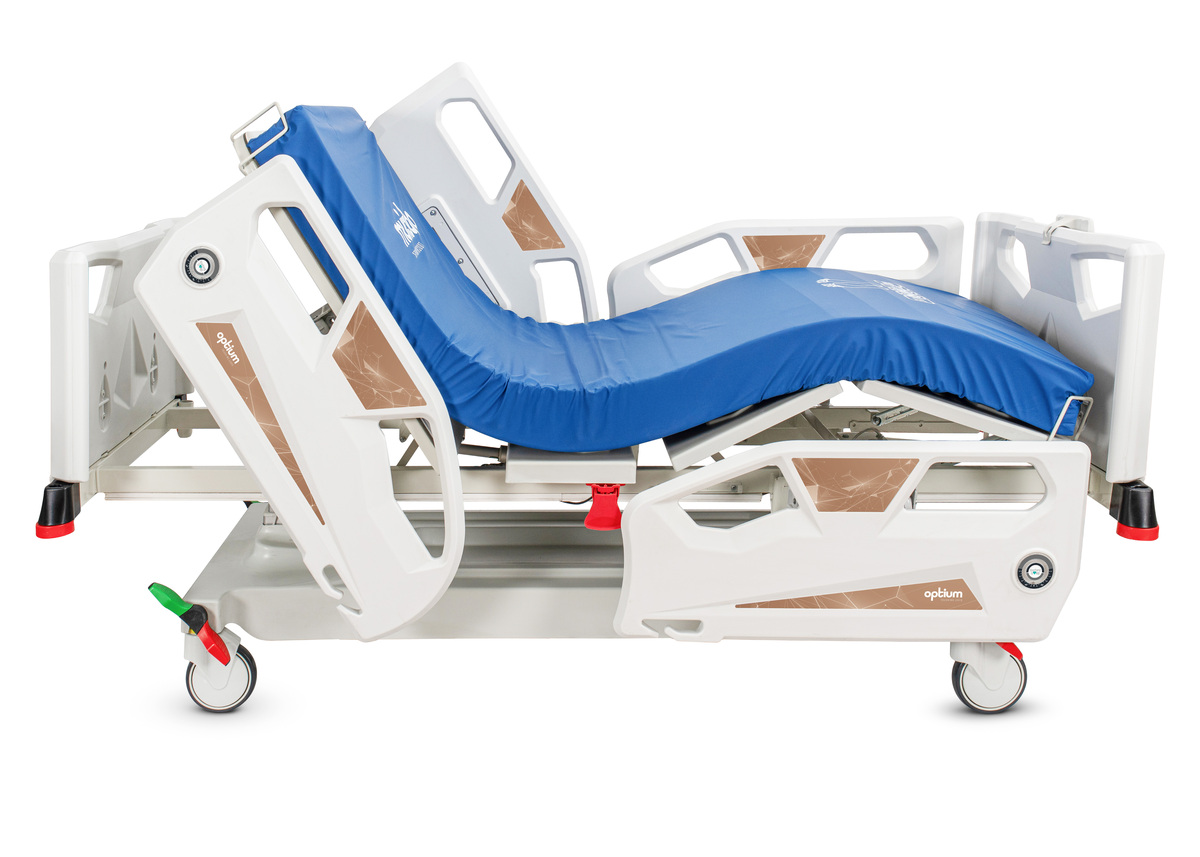

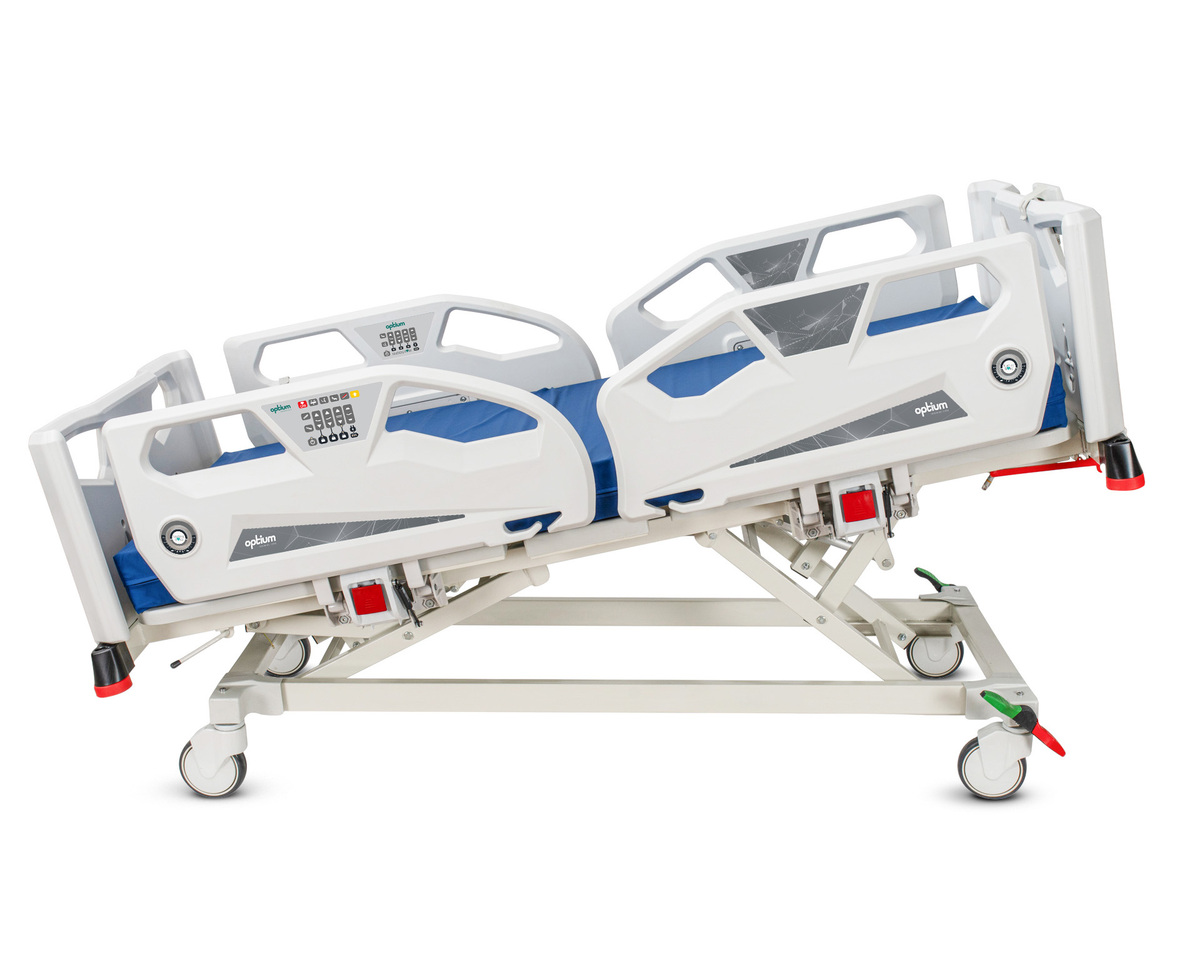

CL 43 ELECTRONIC ICU BED, 4 MOTORS
Send InquiryDescription
- Electrical operated backrest, height and legrest adjustment
- Electrical operated Trendelenburg, Reverse Trendelenburg, fowler and vascular position
- Foot end nurse control unit
- Control panels embedded on side rails; 2 for patient; 2 for nursing staff
- Footrest adjustment by ratchet
- Auto-CPR
- Auto Regression system on backrest
- Auto contour
- Hygienic design (PP), lockable and tuck away side rails
- Easy removable ABS mattress platform
- X-ray cassette holder
- Removable head and footboards
- Electrostatic epoxy painted metal frame
- Height adjustable stainless steel IV pole
- Plastic protective crash bumpers on four corners
- Central Lockable Castors, 150 mm
- Angle indicator for backrest
- Angle indicator for Trendelenburg and Reverse Trendelenburg positions
- Cardiac chair position with single button
- Shock position with single button
- Semi-Fowler position with single button
- Bed exit position with single button
- Examination position with single button
- Electronic CPR with one touch button
- Activation key at remote control to prevent any undesired positions
- Dual sided manual CPR levers at backrest
- Urine bag holder
- Rechargeable Battery Backup
- Bed size extension
- X-ray cassette holder at backrest
- IPX6 standard electronic system
| TECHNICAL DETAILS | ||
|---|---|---|
| Overall Length | : 220 cm | |
| Overall Width | : 100 cm | |
| Mattress Surface | : 85 x 200 cm | |
| Height | : 37-80 cm | |
| Trendelenburg | : 0°-17° | |
| Reverse Trendelenburg | : 0°-17° | |
| Backrest Angle | : 0°-70° | |
| Legrest Angle | : 0°-40° | |
| Castor Diameter | : 15 cm | |
| Under bed Clearance | : 15 cm | |
| Safe Working Load | : 250 kg |
| ELECTRICAL DATA | ||
|---|---|---|
| Power In | : 1.5A max. At 230V AC 50-60 Hz | |
| Electrical Shock Protection | : Class I, Type B | |
| Liquid Ingress Protection | : IPX6 | |
| Batteries | : 2x 12V Series Connected, sealed, rechargeable, Lead / Acid gel, 1.2 amp hrs. |
