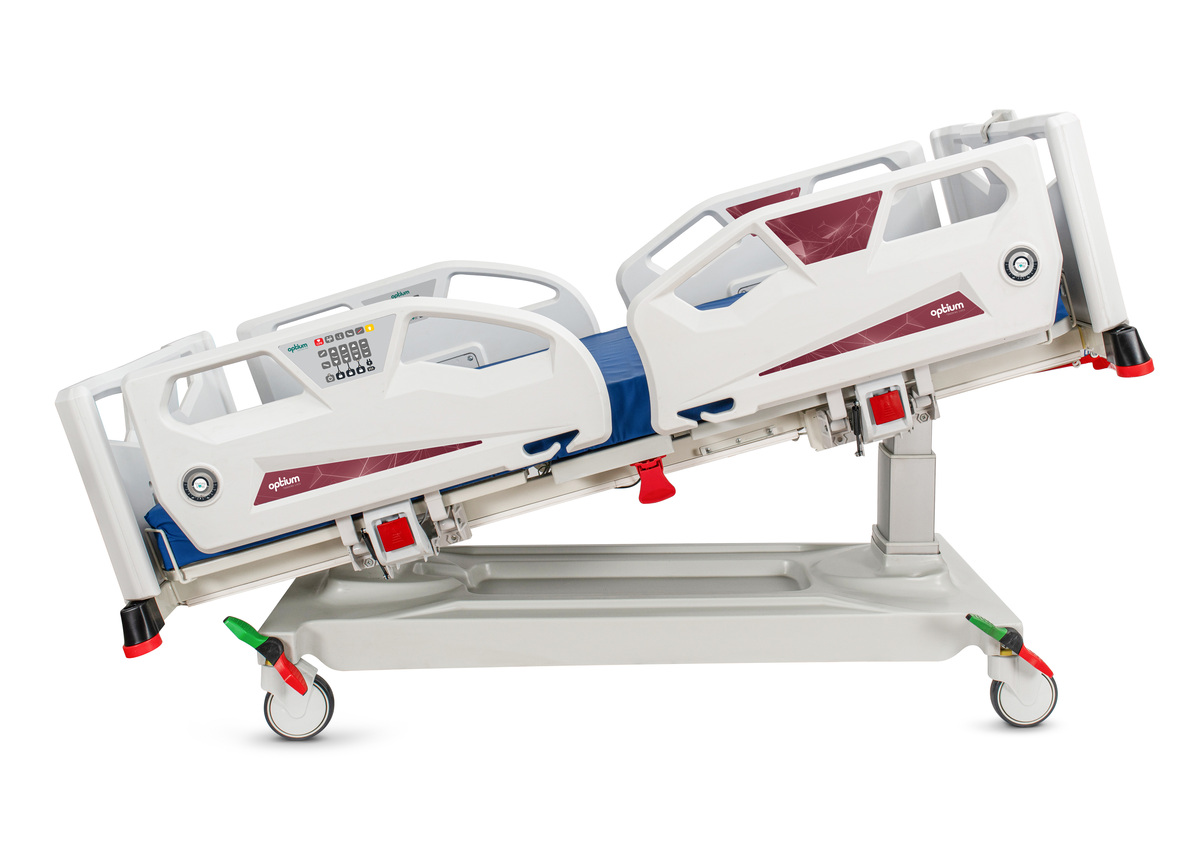

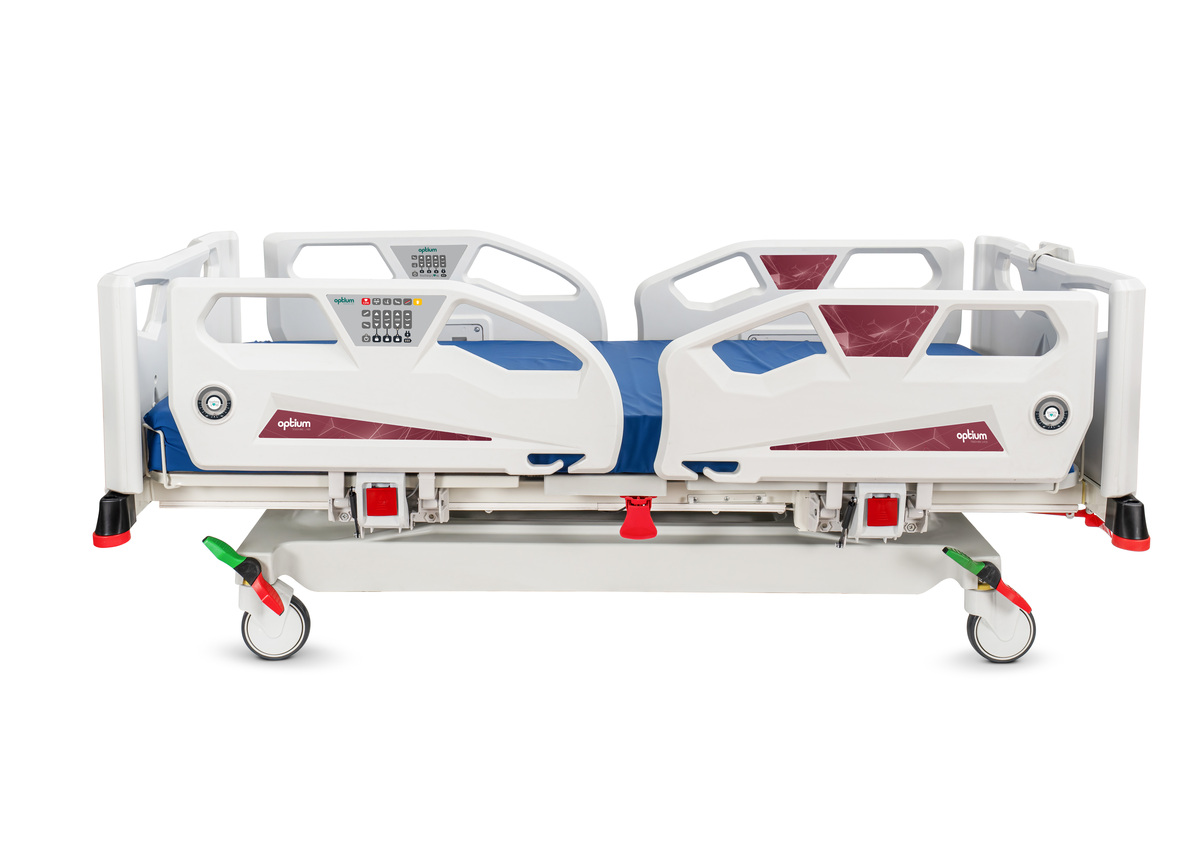

CL 45 ELECTRONIC ICU BED, COLUMN MOTORS

Description

Columnar Motors
Electrical operated backrest, height and legrest adjustment
Electrical operated Trendelenburg, Reverse Trendelenburg, fowler and vascular position
Footrest adjustment by ratchet
Remote control for adjusting positions
Auto-CPR
Auto Regression system on backrest
Auto contour
Hygienic design (PP), lockable and tuck away side rails
Easy removable ABS mattress platform
X-ray translucent HPL backrest
Removable head and footboards
Electrostatic epoxy painted metal frame
Height adjustable stainless steel IV pole
Plastic crash bumpers
Central Lockable Castors, 150 mm
Angle indicator for backrest
Angle indicator for Trendelenburg and reverse Trendelenburg positions
Cardiac chair position
Shock position
Semi-Fowler position
Bed exit position
Examination position
CPR activation with single button
Foot end nurse control panel
Control panels embedded on side rails; 2 for patient; 2 for nursing staff
Activation key at remote control to prevent any undesired positions
Dual sided manual CPR levers at backrest
Rechargeable Battery Backup
X-ray cassette holder
Urine bag holder
Integrated weight scale system (Optional)
Bed size extension (optional)
IPX6 standard electronic system

	ELECTRICAL DATA
	Power In	: 1.5A max. At 230V AC 50-60 Hz
	Electrical Shock Protection	: Class I, Type B
	Liquid Ingress Protection	: IPX6
	Batteries	: 2x 12V Series Connected, sealed, rechargeable, Lead / Acid gel, 1.2 amp hrs.
