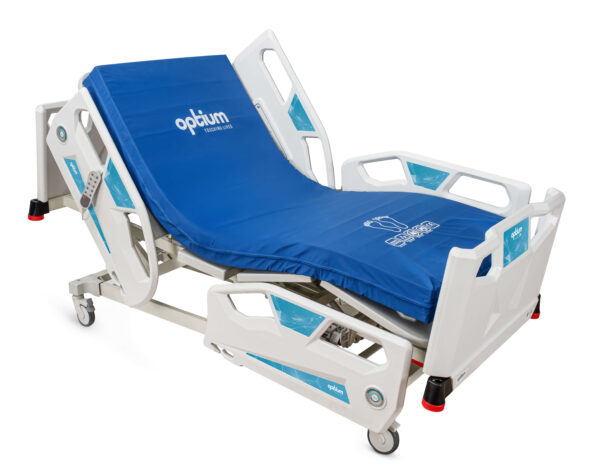

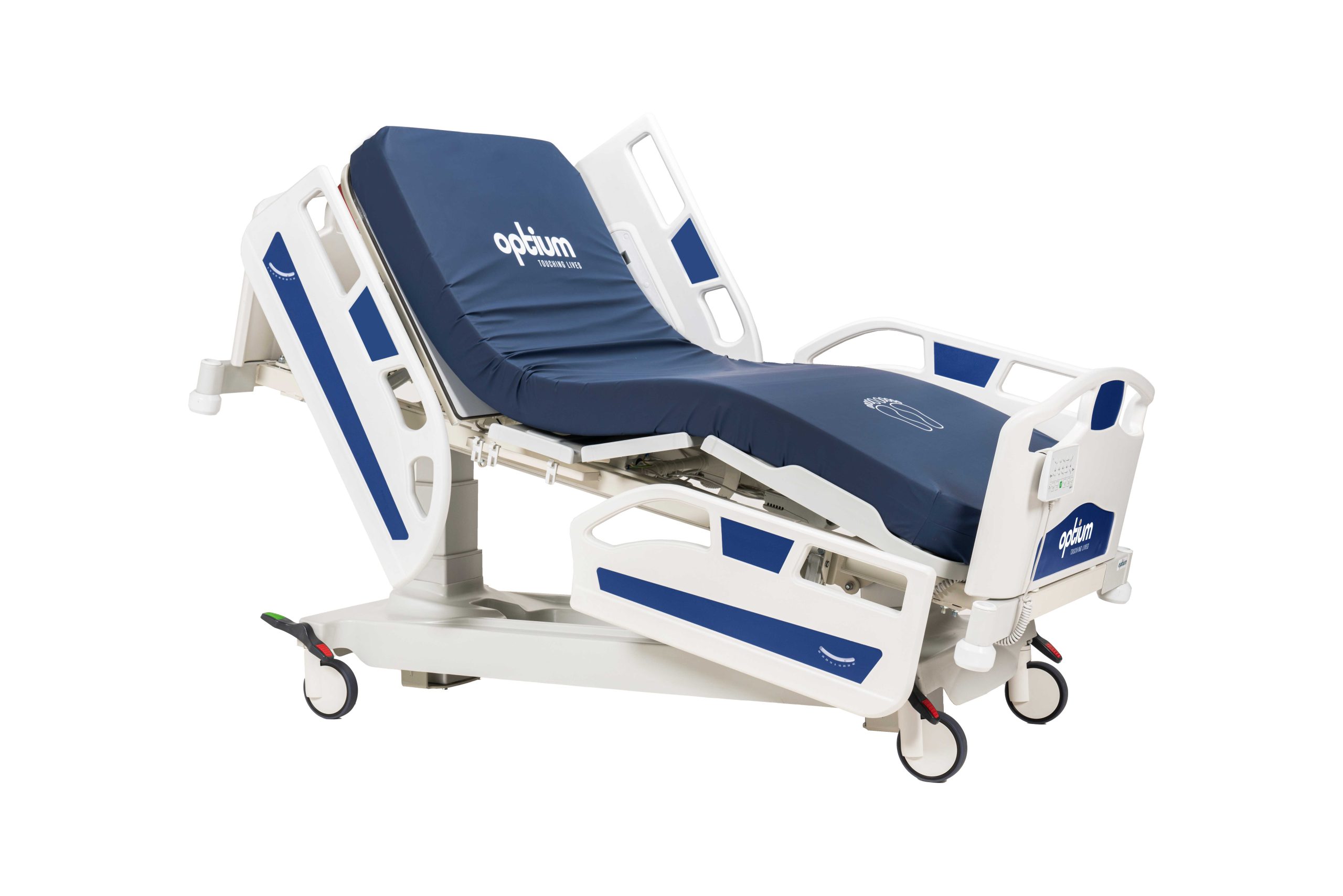

IN 42 ELECTRONIC ICU BED, 4 MOTORS

Description

• • Electrical operated backrest, height and legrest adjustment
  • Electrical operated Trendelenburg, Reverse Trendelenburg, fowler and vascular position
  • Patient handset
  • Foot end nurse control unit
  • Footrest adjustment by ratchet
  • Auto-CPR
  • Auto Regression system on backrest
  • Auto contour
  • Hygienic design (PP), lockable and tuck away side rails
  • Easy removable ABS mattress platform
  • Removable head and footboards
  • Electrostatic epoxy painted metal frame
  • Height adjustable IV pole
  • Plastic protective crash bumpers on four corners
  • Central Lockable Castors, 150 mm, Single
  • Angle indicator for backrest
  • Angle indicator for Trendelenburg and Reverse Trendelenburg positions
  • Cardiac chair position with single button
  • Shock position with single button
  • Semi-Fowler position with single button
  • Bed exit position with single button
  • Examination position with single button
  • Electronic CPR with single button
  • Activation key at remote control to prevent any undesired positions
  • Urine bag holder
  • Urine basket (optional)
  • Dual side manual CPR levers at backrest (optional)
  • Rechargeable Battery Backup (optional)
  • Bed size extension (optional)
  • Twin Castors (optional)
  • X-ray cassette holder at backrest (optional)
  • IPX6 standard electronic system

  	TECHNICAL DETAILS
  	Overall Length: 216 cm	Castor Diameter: 15 cm
  	Overall Width: 102 cm	Under Bed Clearance: 15 cm
  	Height: 42-84 cm	Product Weight: 115 kg
  	Trendelenburg : 0°-16°	Safe Working Load: 250 kg
  	Reverse Trendelenburg: 0°-16°	Power In: 1.5A max. At 230V AC 50-60 Hz
  	Backrest Angle: 0°-70°	Electrical Shock Protection: Class I, Type B
  	Legrest Angle: 0°-35°	Liquid Ingress Protection: IPX6
