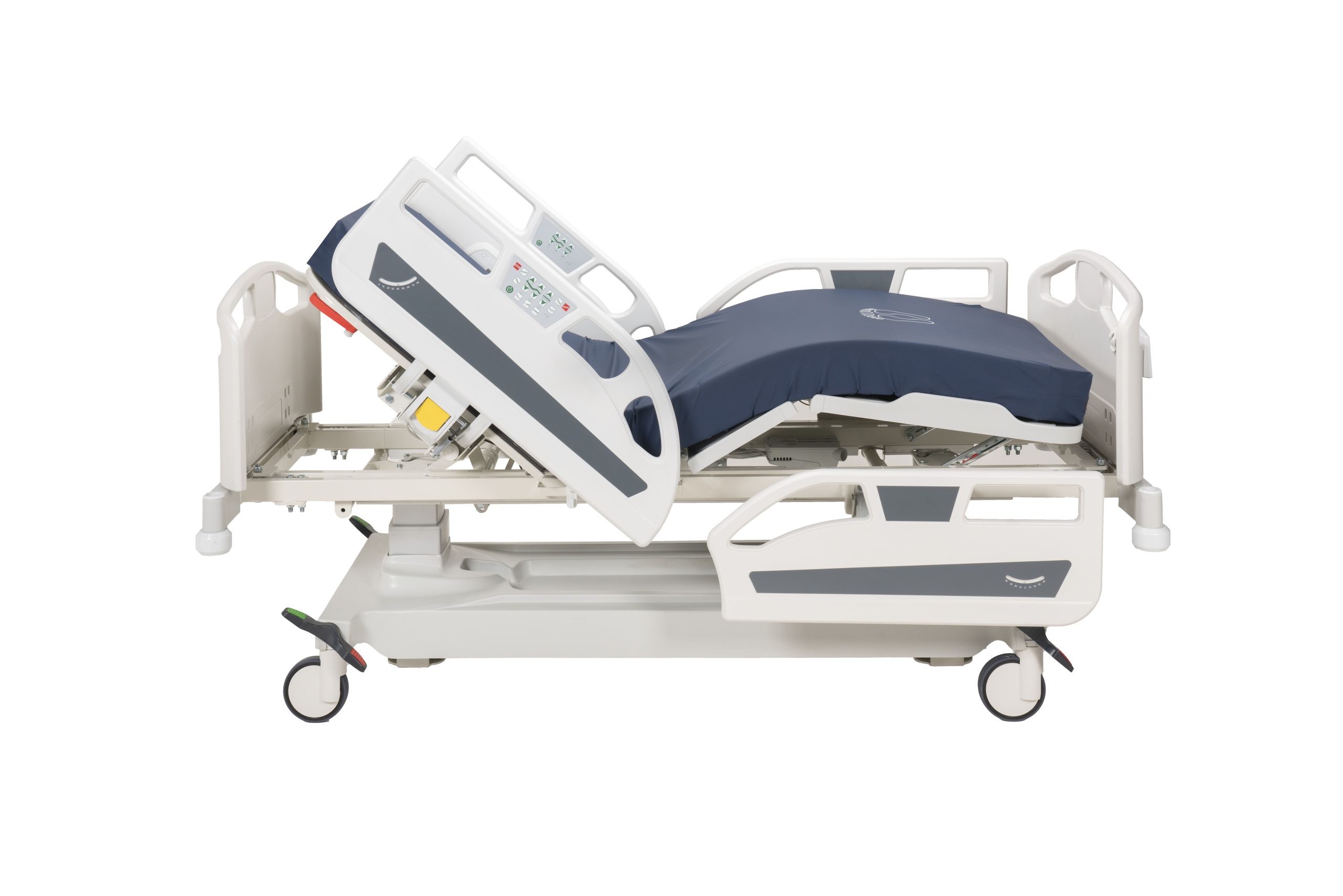

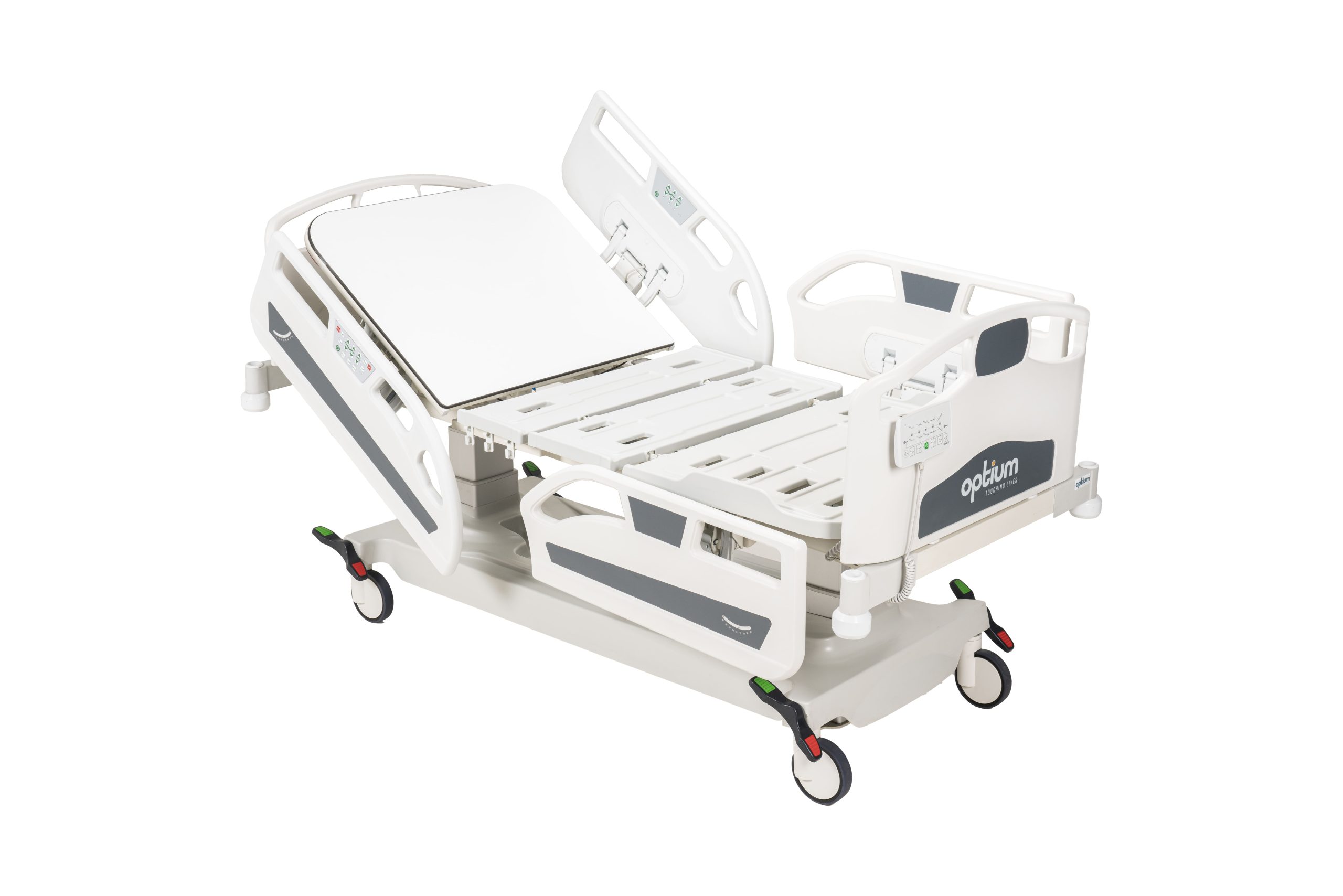

IN 45 ELECTRONIC ICU BED, COLUMN MOTORS
| TECHNICAL DETAILS | ||
|---|---|---|
| Overall Length: 216 cm | Under Bed Clearance: 15 cm | |
| Overall Width: 102 cm | Product Weight: 130 kg | |
| Height: 44-84 cm | Safe Working Load: 250 kg | |
| Trendelenburg : 0°-16° | Power In: 1.5A max. At 230V AC 50-60 Hz | |
| Reverse Trendelenburg: 0°-16° | Electrical Shock Protection: Class I, Type B | |
| Backrest Angle: 0°-70° | Liquid Ingress Protection: IPX6 | |
| Legrest Angle: 0°-35° | Batteries: 2x 12V Series Connected, sealed, rechargeable, Lead / Acid gel,1.2 amp hrs. | |
| Castor Diameter: 15 cm |
Description
- Linak brand Columnar Motors
- Electrical operated backrest, height and legrest adjustment
- Electrical operated Trendelenburg, Reverse Trendelenburg, fowler and vascular position
- Footrest adjustment by ratchet
- Remote control for adjusting positions
- Auto-CPR
- Auto Regression system on backrest
- Auto contour
- Hygienic design (PP), lockable and tuck away side rails
- Easy removable ABS mattress platform
- X-ray translucent HPL backrest
- Removable head and footboards
- Electrostatic epoxy painted metal frame
- Height adjustable stainless steel IV pole
- Plastic crash bumpers
- Central Lockable Castors, 150 mm
- Angle indicator for backrest
- Angle indicator for Trendelenburg and reverse Trendelenburg positions
- Cardiac chair position
- Shock position
- Semi-Fowler position
- Bed exit position
- Examination position
- CPR activation with single button
- Foot end nurse control panel
- Control panels embedded on side rails; 2 for patient; 2 for nursing staff
- Activation key at remote control to prevent any undesired positions
- Dual sided manual CPR levers at backrest
- Rechargeable Battery Backup
- X-ray cassette holder
- Urine bag holder
- Integrated Linak brand weight scale system (Optional)
- Bed size extension (optional)
- IPX6 standard electronic system
