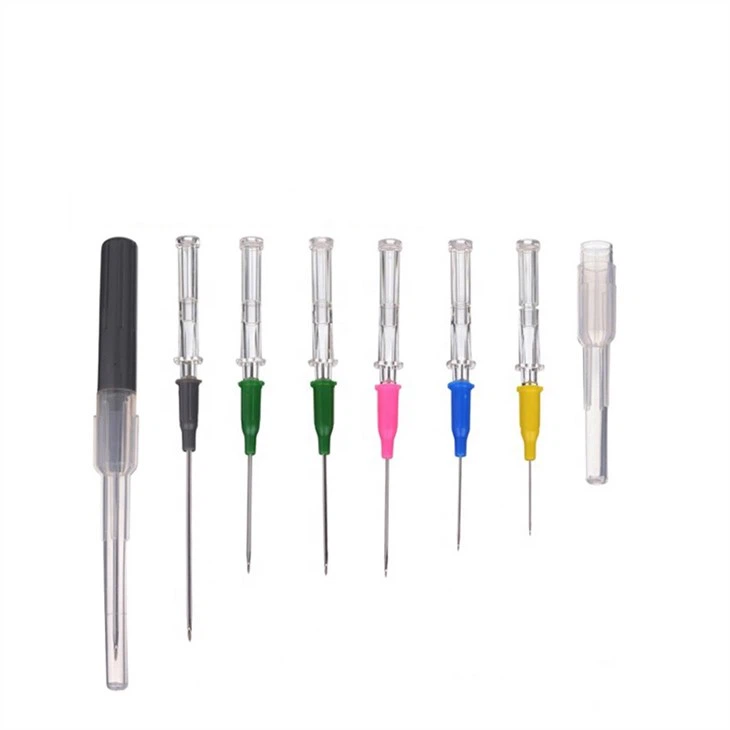

Medical Disposables Sterile IV Cannula

Intravenous (IV) cannulation is a technique in which a cannula is placed inside a vein to provide venous access. Venous access allows sampling of blood, as well as administration of fluids, medications, parenteral nutrition, chemotherapy, and blood products.

Category: Laboratory Consumables

Send Inquiry

Description
Reviews (0)

Description

Introduction：

I.V. Catheter is shorted from intravenous catheter, which is a thin plastic tube inserted into a vein using a needle. PIVCs allow for the administration of medications, fluids and/or blood products.

Features:

1. Integrated enclosed design to prevent cross-infection of blood effectively.

2. Color-coded easing cap allows for easier identification of cannula size.

3. Advanced tip design ,with double-bevelling to ensure easy vein puncture with minimum trauma.

4. Sterilized by EO gas, non-toxic, non-pyrogenic

5. Size from 14 G TO 26G

Specification

Pen Type

Model No	TYJ1801	TYJ1802	TYJ1803	TYJ1804	TYJ1805	TYJ1806	TYJ1807
Size	14G	16G	18G	20G	22G	24G	26G
Diameter	2.0mm	1.6mm	1.2mm	1.0mm	0.8mm	0.7mm	0.6mm
Needle Length	55mm	55mm	45mm	33mm	25mm	20mm	19mm
Color	Red	Grey	Green	Pink	Blue	Yellow	Purple
Flow Rate	300ml/min	200ml/min	90ml/min	61ml/min	36ml/min	18ml/min	12ml/min

Wing Type

Model No	TYJ1901	TYJ1902	TYJ1903	TYJ1904	TYJ1905	TYJ1906	TYJ1907
Size	14G	16G	18G	20G	22G	24G	26G
Diameter	2.0mm	1.6mm	1.2mm	1.0mm	0.8mm	0.7mm	0.6mm
Needle Length	55mm	55mm	45mm	33mm	25mm	20mm	19mm
Color	Red	Grey	Green	Pink	Blue	Yellow	Purple
Flow Rate	300ml/min	200ml/min	90ml/min	61ml/min	36ml/min	18ml/min	12ml/min

Injection Type

Model No	TYJ2001	TYJ2002	TYJ2003	TYJ2004	TYJ2005	TYJ2006	TYJ2007
Size	14G	16G	18G	20G	22G	24G	26G
Diameter	2.0mm	1.6mm	1.2mm	1.0mm	0.8mm	0.7mm	0.6mm
Needle Length	55mm	55mm	45mm	33mm	25mm	20mm	19mm
Color	Red	Grey	Green	Pink	Blue	Yellow	Purple
Flow Rate	300ml/min	200ml/min	90ml/min	61ml/min	36ml/min	18ml/min	12ml/min
