Optical Biological Binocular Microscope XSZ-BK2003 For Analyzing Biology Bacteria
Binocular Biological Microscope XSZ-BK2003 features Objective of Achromatic 4X、10X、40X (S)、100X (S, OIL) , available with standard WF 10X/18mm eyepieces. High-Quality reproduction and high-resolving power is the results of the superior optical design. Low distortion, longer working distance, multiple lens combinations, and ergonomic design gives users the best observation experience across a wide variety of samples. With a versatile observation tube, the viewing head is suitable for multiple imaging options and capable of advanced measurement when combined with other analysis software.
Description
Introduction
Binocular Biological Microscope XSZ-BK2003 features Objective of Achromatic 4X、10X、40X (S)、100X (S, OIL) , available with standard WF 10X/18mm eyepieces. High-Quality reproduction and high-resolving power is the results of the superior optical design. Low distortion, longer working distance, multiple lens combinations, and ergonomic design gives users the best observation experience across a wide variety of samples. With a versatile observation tube, the viewing head is suitable for multiple imaging options and capable of advanced measurement when combined with other analysis software.
Features:
Eyepiece: WF 10X/18mm
Objective: Achromatic 4X、10X、40X (S)、100X (S, OIL)
Viewing Head: Binocular Head， Inclined 30°，Rotatable 360° ,Interpupillary Distance 48-75mm
Nosepiece: Quadruple
Mechanical Stage:Size: 145x140mm, Travel Range: 76x52mm Scale 0.1mm
Condenser: Abbe Condenser N.A 1.25 with Iris Diaphragm
Focusing: Coaxial Coarse and Fine Focusing Knobs Travel Range: 26mm, Scale: 2μm
Illumination: 6V/20W Halogen Lamp
Product Specifications:
| Eyepiece | WF 10X/18mm |
| Objective | Achromatic 4X、10X、40X (S)、100X (S, OIL) |
| Viewing Head | Binocular Head， Inclined 30°，Rotatable 360° ,Interpupillary Distance 48-75mm |
| Nosepiece | Quadruple |
| Mechanical Stage | Size: 145x140mm, Travel Range: 76x52mm Scale 0.1mm |
| Condenser | Abbe Condenser N.A 1.25 with Iris Diaphragm |
| Focusing | Coaxial Coarse and Fine Focusing Knobs Travel Range: 26mm, Scale: 2μm |
| Illumination | 6V/20W Halogen Lamp |

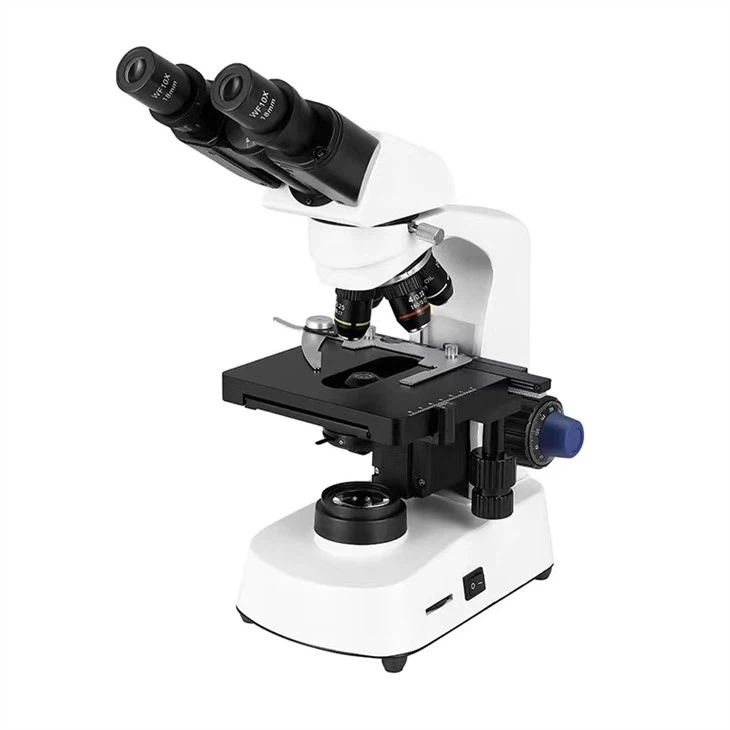

Product Picture
FAQ
Q1. What is your minimum order quantity?
A: The quantity is 1 set at least.
Q2. How about the Delivery time?
A:There may be about 15-25 days after receipt of 30% T/T deposit payment.
Q3. Is your company qualified to export to somewhere?
A:Yes, we are a professional manufacturer and exporters of the laboratory disposables and equipment.
Q4. How does your customers comment your work?
A: Most customers will give us good comment because we will give them the best after-service.
Q5. Do you have any quality certificate for this Binocular Microscope XSZ-BK2003?
A: Yes we have CE/ISO13458.
