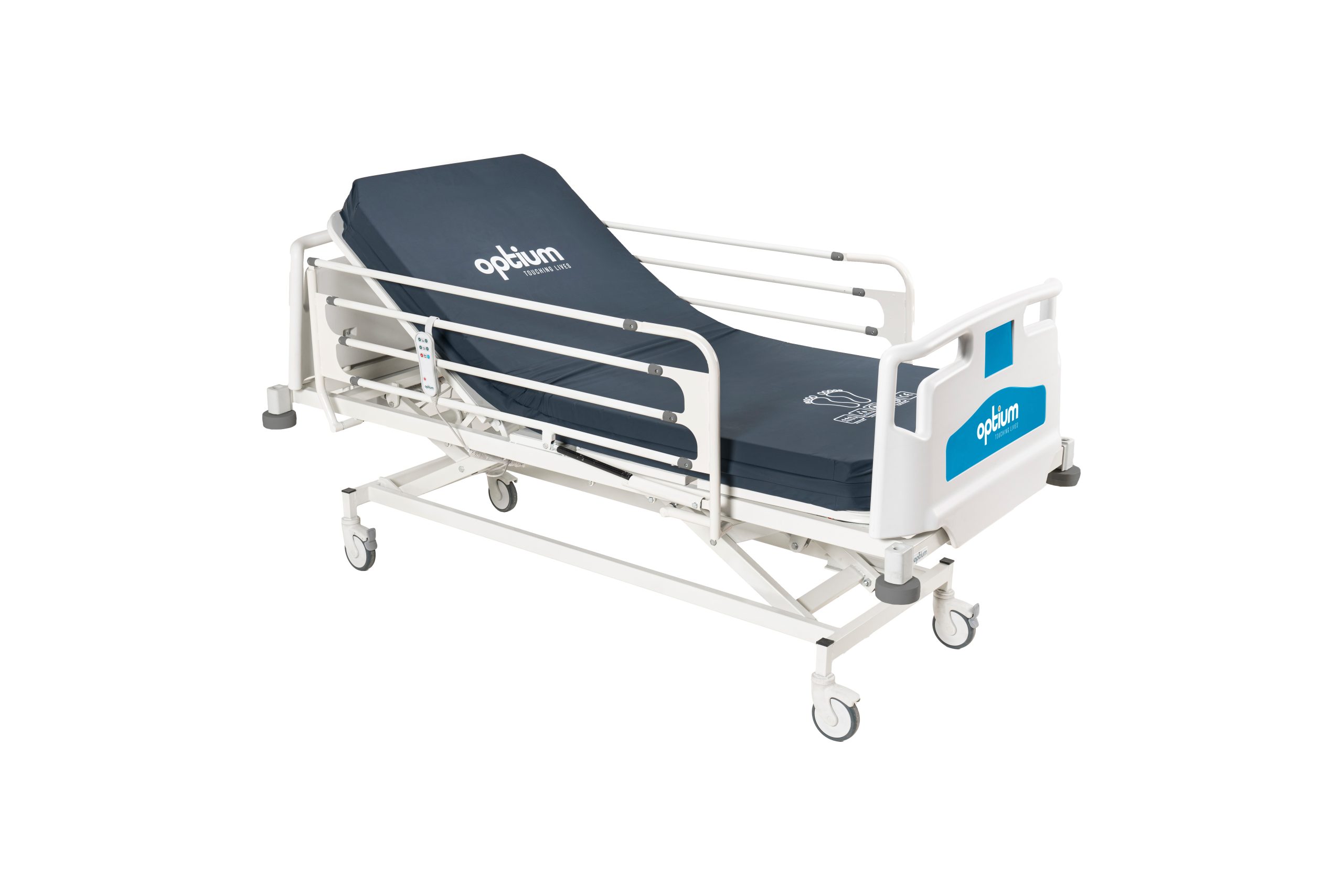

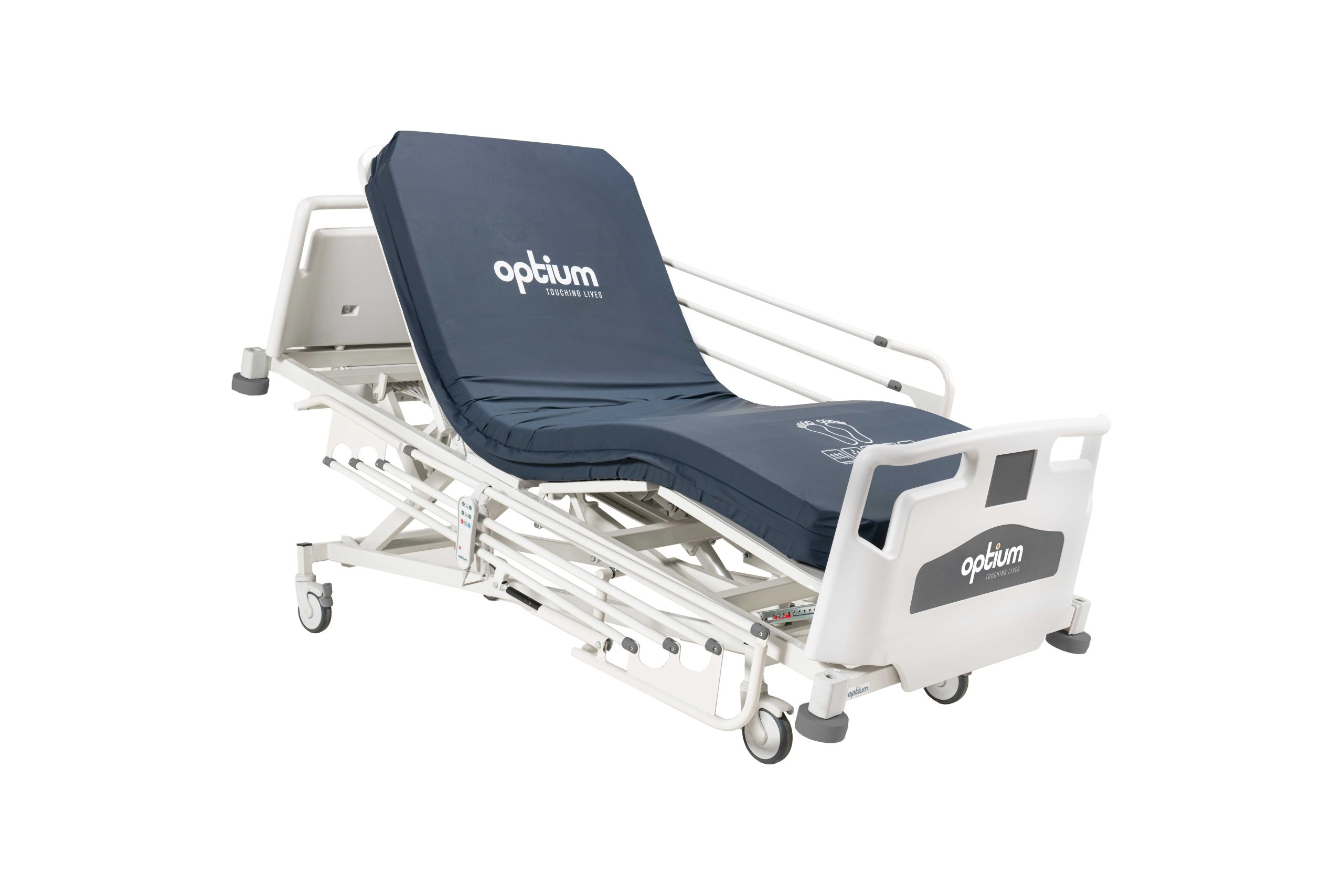

TI 32 ELECTRONIC PATIENT BED, 3 MOTORS
Send InquiryDescription
- Electrical operated backrest, height and legrest adjustment
- Fowler and Vascular positions
- Hand remote control
- Lockable and detachable PP head and foot boards
- Auto-contour
- Four strips foldable steel side rails assisted by gas spring
- Auto-regression system for backrest
- Perforated steel sheet mattress platform
- Electrostatic powder coated metal frame
- Footrest adjustment by ratchet
- Height adjustable stainless steel IV pole
- Protective plastic corner bumpers
- 125mm diagonal lockable castors
- 150 mm central lockable castors (optional)
- Dual side manual CPR levers at backrest (optional)
- Trendelenburg position by gas spring (optional)
- Nurse control panel at foot side (optional)
- Bed Extension (optional)
- Battery backup (optional)
- IP66 standard electronic system
| TECHNICAL DETAILS | ||
|---|---|---|
| Overall Length: 215 cm | Under Bed Clearance: 12,5 cm | |
| Overall Width: 104 cm | Product Weight: 115 kg | |
| Height Range: 41-84 cm | Safe Working Load: 250 kg | |
| Backrest Angle: 0°-70° | Power In: 1.5A max. At 230V AC 50-60 Hz | |
| Legrest Angle: 0°-35° | Electrical Shock Protection: Class I, Type B | |
| Castor Diameter: 12,5 cm | Liquid Ingress Protection: IPX6 |
