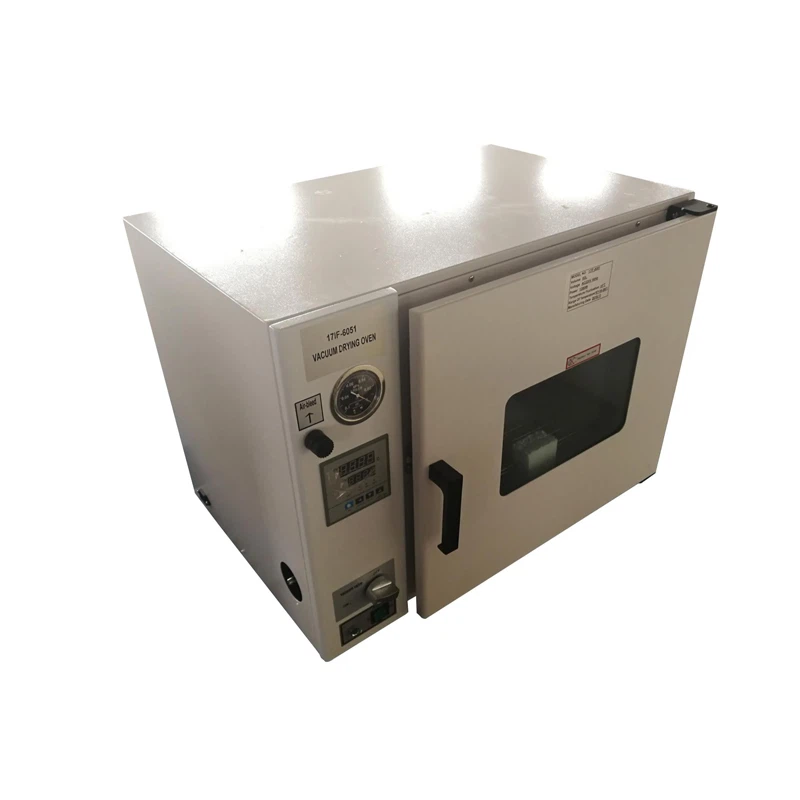

Vacuum Drying Oven
Vacuum Drying Oven Introduction: Vacuum Drying Box is widely used in biochemistry, chemical and pharmaceutical, health care, agricultural research, environment protection and other areas of research and application for powder drying, baking and all kinds of glass containers ‘ disinfection and…
Description
Vacuum Drying Oven
Introduction:
Vacuum Drying Box is widely used in biochemistry, chemical and pharmaceutical, health care, agricultural research, environment protection and other areas of research and application for powder drying, baking and all kinds of glass containers ‘
disinfection and sterilization. Especially for those drying heat-sensitive, labile, oxidizing material and decompounded to carry on fast and effective drying process.
Feature:
1.The chamber is cuboid so as to maximize the volume. Microcomputer intelligent;temperature controller, makes temperature control accurate and reliable.
2.The working room uses ordinary sprayed steel plate or stainless steel plate, good cold-roll shelf sheets cover, with anti-static plastic coating. 3.Storage, heating, experiments and drying are all doing in the environment with no oxygen or filled with inert gas, so oxidation will not happen. 4.The tightness of the door can be adjusted by user optionally. Wholly-shaped silicone rubber door seal ensures the high vacuum degree in chamber.
| Model | DZF6020 | DZF6021 | DZF6050 | DZF6051 |
| Volume | 24L | 24L | 52L | 52L |
| Liner size(mm) | 300×300×275 | 300×300×275 | 415×345×370 | 415×345×370 |
| Dimension(mm) | 480×610×470 | 480×610×470 | 720×550×510 | 720×550×510 |
| Supply voltage | AC 220V 50Hz | |||
| Temperature control range | RT+10~200℃ | |||
| Temperature fluctuation | ±1℃ | |||
| Vacuum degree | ≤133(Pa) | |||
| Heating power | 500W | 500W | 1200W | 1200W |
| Timing range | 0-9999min | |||
| Internal material | Stainless steel | Cold rolled sheet | Stainless steel | Cold rolled sheet |
